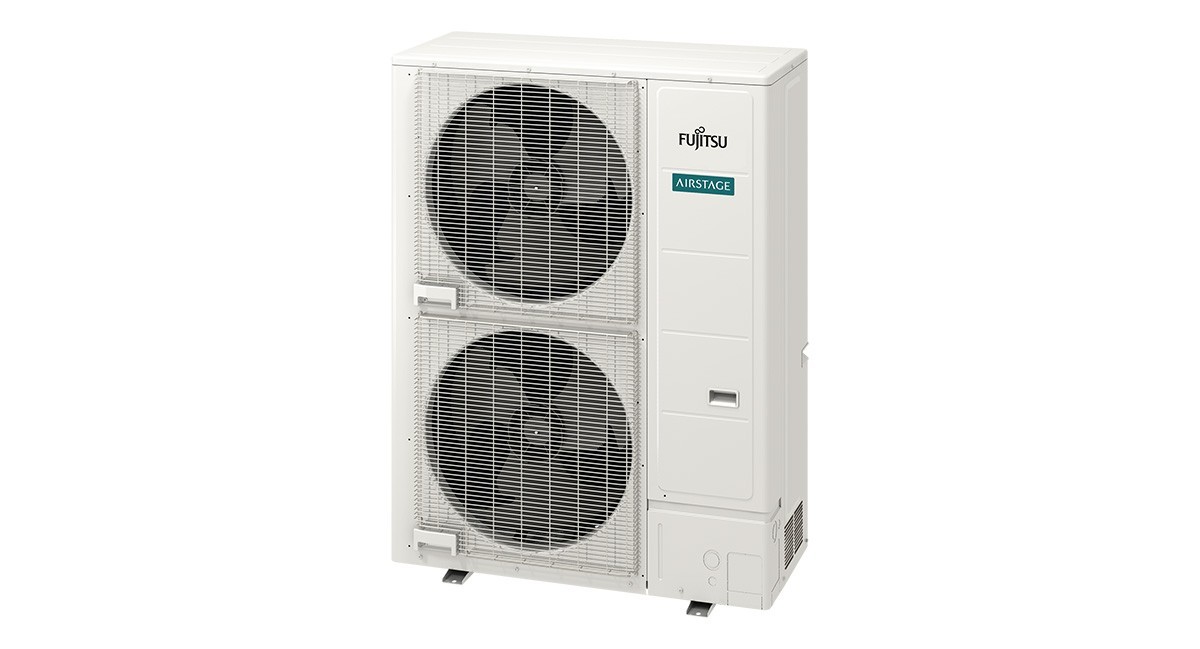

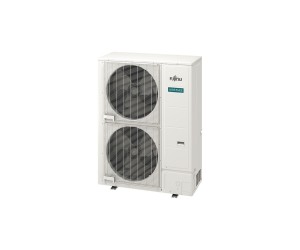

Three-phase outdoor unit AJY072LELDH for Fujitsu Airstage VRF system, J-IVL Series

22.4 kW

J-IVL

Inquiry Where to buy

Three-phase outdoor unit AJY072LELDH for Fujitsu Airstage VRF system, J-IVL Series

Cooling Capacity: 22.4 kW
Heating Capacity: 22.4 kW
Maximum connectable indoor units: 1-20
Maximum pipe lenght: 400 m
Maximum height difference (upper/lower): 50/40 m
Operating Range:
- Cooling: -15 to 46°C
- Heating: -20 to 21°C

Variants

Technical Specifications of three-phase outdoor unit AJY072LELDH for Fujitsu Airstage VRF system, J-IVL Series
Rated capacity range		HP	8
Model name			AJY072LELDH
Maximum connectable indoor units			1-20
Power source			3-phase, 400V~, 50Hz
Capacity	Cooling	kW	22.4
	Nominal Heating		22.4
	Max. Heating		25.0
Input power	Cooling	kW	6.30
	Nominal Heating		4.65
	Max. Heating		5.45
EER	Cooling	W/W	3.56
COP	Nominal Heating		4.82
COP	Max. Heating		4.56
SEER	Cooling		7.62
SCOP	Heating		3.89
ηc	Cooling	%	301.8
ηh	Heating	%	152.6
Air flow rate	High	m3/h	8,400
Sound pressure level/ Power level	Cooling	%	52 / 66
Sound pressure level/ Power level	Heating	%	54 / 66
Heat exchanger fin			Blue fin
Net Dimensions	Height	mm	1,428
	Width		1,080
	Depth		480
Weight		kg	170
Refrigerant	Type (Global Warming Potential)		R410A (2,088)
Refrigerant	Charge	kg (CO2eq-T)	7.0 (14.6)
Connection pipe diameter	Liquid	mm	9.52
Connection pipe diameter	Gas	mm	19.05
Total pipe length		m	400
Max. height difference		m	50/40 (Outdoor unit: Upper/Lower)
Operating Range	Cooling	°CDB	-15 to 46
Operating Range	Heating	°CDB	-20 to 21

Note: Specifications are based on the following conditions.
Cooling: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB.
Heating: Indoor temperature of 20°CDB/(15°CWB), and outdoor temperature of 7°CDB/6°CWB.
Pipe length: 7.5 m; Height difference between outdoor unit and indoor unit: 0 m.
The protective function may work when using it outside the operation range.
