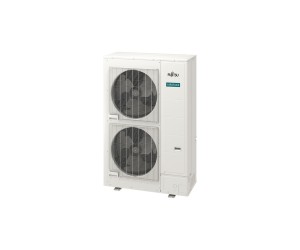

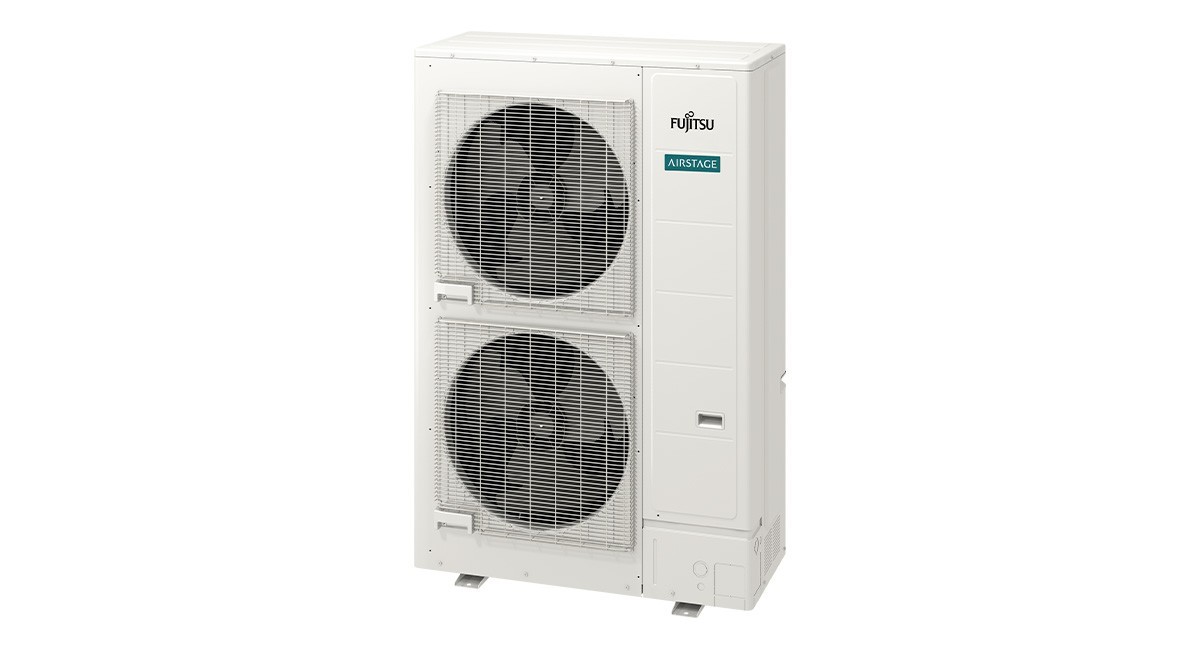

Three-phase outdoor unit AJY126LELDH for Fujitsu Airstage VRF system, J-IVL Series

40.0 kW

J-IVL

Inquiry Where to buy

Three-phase outdoor unit AJY126LELDH for Fujitsu Airstage VRF system, J-IVL Series

Cooling Capacity: 40.0 kW
Heating Capacity: 40.0 kW
Maximum connectable indoor units: 1-36
Maximum pipe lenght: 400 m
Maximum height difference (upper/lower): 50/40 m
Operating Range:
- Cooling: -5 to 46°C
- Heating: -20 to 21°C

Variants

Technical Specifications of three-phase outdoor unit AJY126LELDH for Fujitsu Airstage VRF system, J-IVL Series
Rated capacity range		HP	14
Model name			AJY126LELDH
Maximum connectable indoor units			1-36
Power source			3-phase, 400V~, 50Hz
Capacity	Cooling	kW	40.0
	Nominal Heating		40.0
	Max. Heating		45.0
Input power	Cooling	kW	12.12
	Nominal Heating		9.71
	Max. Heating		11.81
EER	Cooling	W/W	3.30
COP	Nominal Heating		4.12
COP	Max. Heating		3.81
SEER	Cooling		7.27
SCOP	Heating		3.53
ηc	Cooling	%	287.8
ηh	Heating	%	138.2
Air flow rate	High	m3/h	13,000
Sound pressure level/ Power level	Cooling	%	62 / 75
Sound pressure level/ Power level	Heating	%	63 / 76
Heat exchanger fin			Blue fin
Net Dimensions	Height	mm	1,638
	Width		1,080
	Depth		480
Weight		kg	213
Refrigerant	Type (Global Warming Potential)		R410A (2,088)
Refrigerant	Charge	kg (CO2eq-T)	11.0 (23.0)
Connection pipe diameter	Liquid	mm	12.70
Connection pipe diameter	Gas	mm	28.58
Total pipe length		m	400
Max. height difference		m	50/40 (Outdoor unit: Upper/Lower)
Operating Range	Cooling	°CDB	-5 to 46*
Operating Range	Heating	°CDB	-20 to 21

Note: Specifications are based on the following conditions.
Cooling: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB.
Heating: Indoor temperature of 20°CDB/(15°CWB), and outdoor temperature of 7°CDB/6°CWB.
Pipe length: 7.5 m; Height difference between outdoor unit and indoor unit: 0 m.
The protective function may work when using it outside the operation range.
