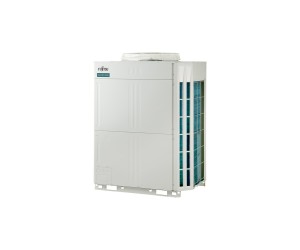

Тhree-phase outdoor unit AJY126LALDH for Fujitsu Airstage VRF system, V-IV Series

40.0 kW

V-IV

Inquiry Where to buy

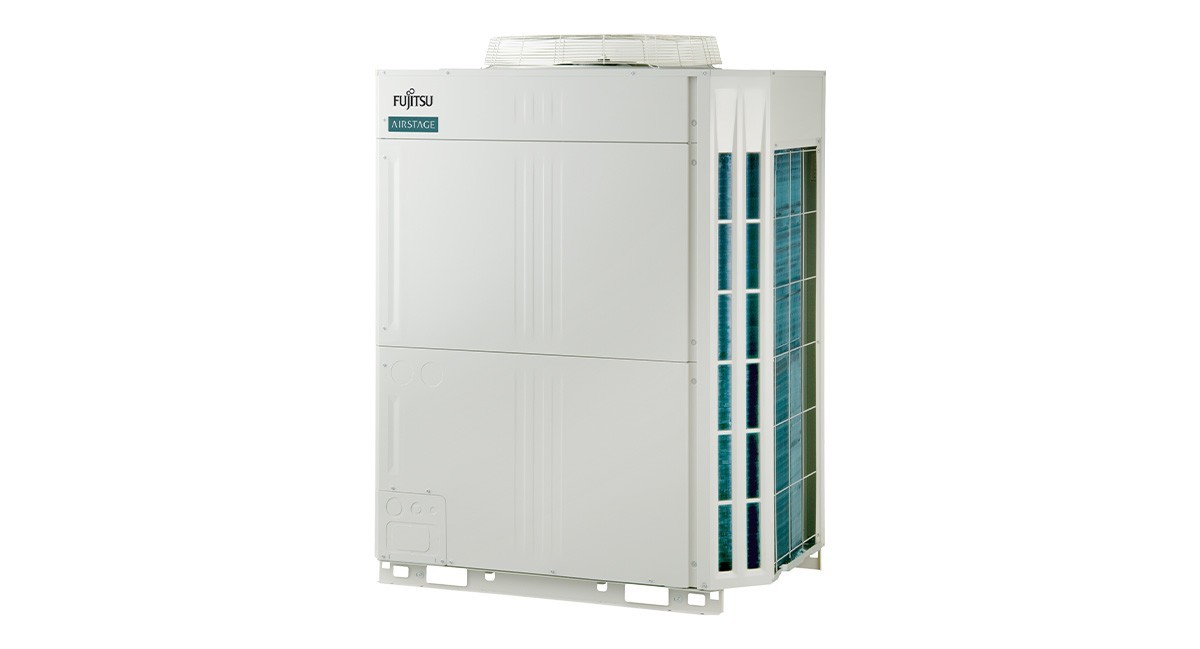

Тhree-phase outdoor unit AJY126LALDH for Fujitsu Airstage VRF system, V-IV Series

Cooling Capacity: 40.0 kW
Heating Capacity: 40.0 kW
Maximum connectable indoor units: 30^*1
Maximum pipe lenght: 700 m
Maximum height difference (upper/lower): 50/40 m
Operating Range:
- Cooling: -15 to 46°C
- Heating: -20 to 21°C

Variants

Technical Specifications of three-phase outdoor unit AJY126LALDH for Fujitsu Airstage VRF system, V-IV Series
Rated capacity range		HP	14
Model name			AJY126LALDH
Unit 1 Unit 2 Unit 3			AJY126LALDH
Maximum connectable indoor units*1			30
Connectable capacity range of indoor units		kW	20.0 - 60.0
Power source			3-phase, 4-wire, 400V~, 50Hz
Capacity	Cooling	kW	40.0
	Nominal Heating		40.0
	Max. Heating		45.0
Input power	Cooling	kW	13.18
	Nominal Heating		11.74
	Max. Heating		14.00
EER	Cooling	W/W	3.03
COP	Nominal Heating		3.41
COP	Max. Heating		3.21
SEER	Cooling		6.67
SCOP	Heating		4.19
ηc	Cooling	%	264
ηh	Heating	%	165.0
Air flow rate	High	m3/h	13.000
Sound pressure level*2/ Power level	Cooling	%	62 / 84
Sound pressure level*2/ Power level	Heating	%	64 / 85
Max. External static pressure		Pa	82
Compressor motor output		kW	11.0
Heat exchanger fin			Blue fin
Net Dimensions	Height	mm	1,690
	Width		1.240
	Depth		765
Weight		kg	275
Refrigerant	Type (Global Warming Potential)		R410A (2,088)
Refrigerant	Charge	kg (CO2eq-T)	11.8 (24.6)
Connection pipe diameter	Liquid	mm	12.70
Connection pipe diameter	Gas	mm	28.58
Operating Range	Cooling	°CDB	-15 to 46
Operating Range	Heating	°CDB	-20 to 21

Note: Specifications are subject to the following conditions:
Cooling: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB.
Heating: Indoor temperature of 20°CDB/(15°CWB), and outdoor temperature of 7°CDB/6°CWB.
Pipe length: 7.5 m; Height difference between outdoor unit and indoor unit: 0 m.
When cooling operation is be conducted at an outdoor air temperature below -5°C, the outdoor unit must be installed in a position that is higher than or equal to that of the indoor units.
*These specifications are determined by ducted combination.
*Multiple outdoor units are not certified by Eurovent.
