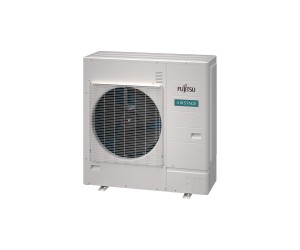

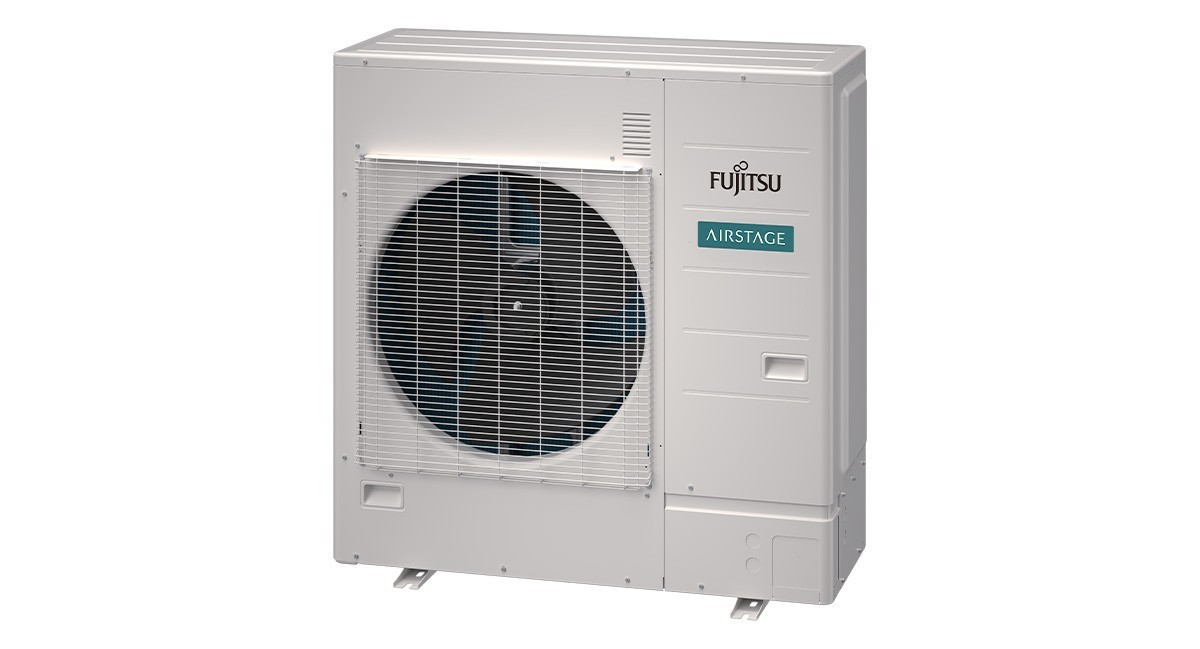

Single-phase outdoor unit AJY045LCLDH for Fujitsu Airstage VRF system, J-IVS Series
- Cooling Capacity: 14.0 kW
- Heating Capacity: 14.0 kW
- Maximum connectable indoor units: 12
- Maximum pipe lenght: 80 m
- Maximum height difference (upper/lower): 30/30 m
- Operating Range:
- Cooling: -5 to 46°C
- Heating: -20 to 21°C
| Technical Specifications of three-phase outdoor unit AJY045LCLDH for Fujitsu Airstage VRF system, J-IVS Series | |||
|---|---|---|---|
| Rated capacity range | HP | 5 | |
| Model name | AJY045LCLDH | ||
| Maximum connectable indoor units | 1-12 | ||
| Power source | Single phase, 230V~, 50Hz | ||
| Capacity | Cooling | kW | 14.0 |
| Nominal Heating | 14.0 | ||
| Max. Heating | 16.0 | ||
| Input power | Cooling | kW | 4.71 |
| Nominal Heating | 3.77 | ||
| Max. Heating | 5.04 | ||
| EER | Cooling | W/W | 2.97 |
| COP | Nominal Heating | 3.71 | |
| Max. Heating | 3.17 | ||
| SEER | Cooling | 5.58 | |
| SCOP | Heating | 3.96 | |
| ηc | Cooling | % | 220.2 |
| ηh | Heating | 155.4 | |
| Air flow rate | High | m3/h | 4,400 |
| Sound pressure level/ Power level |
Cooling | % | 53 / 69 |
| Heating | 56 / 69 | ||
| Heat exchanger fin | Blue fin | ||
| Net Dimensions | Height | mm | 998 |
| Width | 970 | ||
| Depth | 370 | ||
| Weight | kg | 88 | |
| Refrigerant | Type (Global Warming Potential) | R410A (2,088) | |
| Charge | kg (CO2eq-T) | 4.0 (8.4) | |
| Connection pipe diameter | Liquid | mm | 9.52 |
| Gas | 15.88 | ||
| Total pipe length | m | 80 | |
| Max. height difference | 30 | ||
| Operating Range | Cooling | °CDB | -5 to 46 |
| Heating | -20 to 21 | ||
Note: Specifications are based on the following conditions.
Cooling: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB.
Heating: Indoor temperature of 20°CDB/(15°CWB), and outdoor temperature of 7°CDB/6°CWB.
Pipe length: 7.5 m; Height difference between outdoor unit and indoor unit: 0 m.
The protective function may work when using it outside the operation range.
- Series
- J-IVS
- Outdoor Unit
- AJY045LCLDH
- Power Supply (V/ø/Hz)
- 400 / 3 / 50
- Cooling Capacity (kW)
- 14.0
- Heating Capacity (kW)
- 14.0
- EER (Energy Efficiency Ratio)
- 2.97
- COP (Coefficient Of Performance)
- 3.71
- SEER (Seasonal Energy Efficency Ratio)
- 5.58
- SCOP (Seasonal Coefficent Of Performance)
- 3.96
- Sound Pressure Outdoor Unit - cooling/heating dB(A)
- 53 / 69
- Sound Power Outdoor Unit - cooling/heating dB(A)
- 56 / 69
- Dimensions - Outdoor Unit HxWxD (mm)
- 998 x 970 x 370
- Weight - Outdoor Unit (kg)
- 88
- Maximum Pipe Lenght (m)
- 80
- Maximum Height Difference (m)
- 30 / 30
- Operation Range - Cooling (°C)
- -5 ~ 46
- Operation Range - Heating (°C)
- -20 ~ 21
- Refrigerant
- R410A
- Warranty
- 3 years
