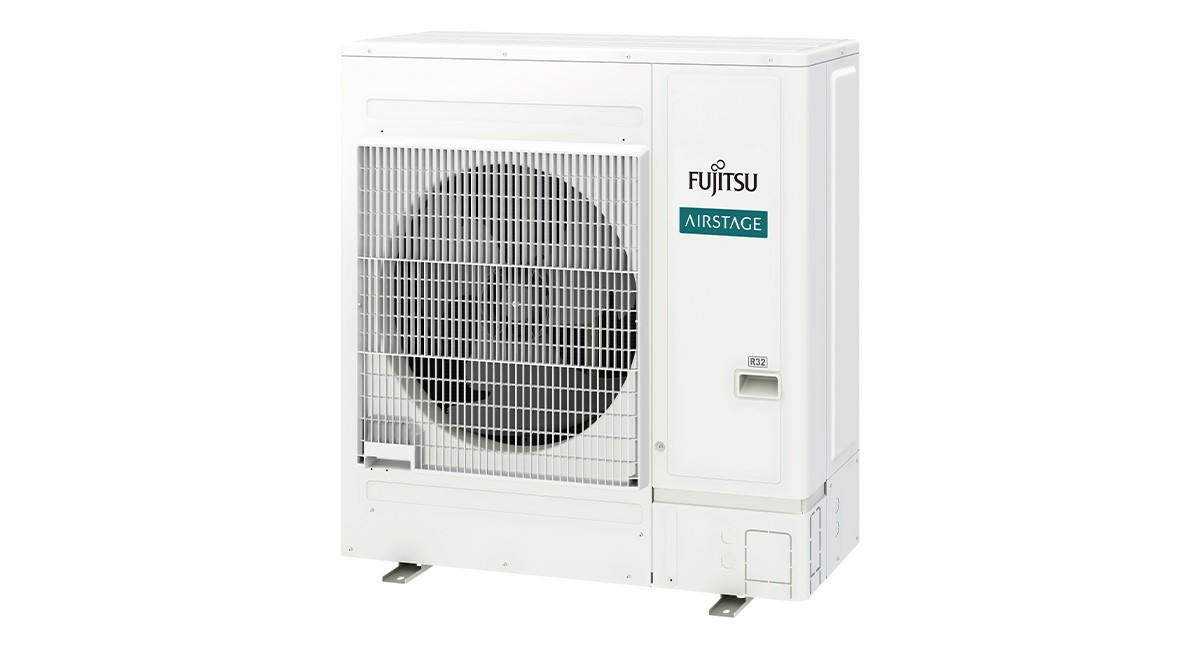

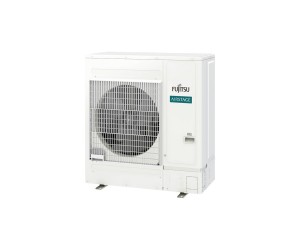

Single-phase outdoor unit AJY040KCTAH for Fujitsu Airstage VRF system, J-VS Series

12.1 kW

J-VS

Inquiry Where to buy

Single-phase outdoor unit AJY040KCTAH for Fujitsu Airstage VRF system, J-VS Series

Cooling Capacity: 12.1 kW
Heating Capacity: 12.1 kW
Maximum connectable indoor units: 1-11
Maximum pipe lenght: 120 m
Maximum height difference (upper/lower): 30/30 m
Operating Range:
- Cooling: -5 to 46°C
- Heating: -20 to 21°C

Variants

Technical Specifications of single-phase outdoor unit AJY040KCTAH for Fujitsu Airstage VRF system, J-VS Series
Rated capacity range		HP	4
Model name			AJY040KCTAH
Maximum connectable indoor units			1-11
Power source			Single phase, 230V~, 50Hz
Capacity	Cooling	kW	12.1
	Nominal Heating		12.1
	Max. Heating		13.6
Input power	Cooling	kW	3.15
	Nominal Heating		2.55
	Max. Heating		3.09
EER	Cooling	W/W	3.84
COP	Nominal Heating		4.74
COP	Max. Heating		4.40
SEER	Cooling		8.20
SCOP	Heating		5.37
ηc	Cooling	%	325.0
ηh	Heating	%	211.8
Air flow rate	High	m3/h	4,450
Sound pressure level/ Power level	Cooling	%	52 / 70
Sound pressure level/ Power level	Heating	%	54 / 71
Heat exchanger fin			Blue fin
Net Dimensions	Height	mm	998
	Width		940
	Depth		320
Weight		kg	74
Refrigerant	Type (Global Warming Potential)		R32 (675)
Refrigerant	Charge	kg (CO2eq-T)	2.7 (1.823)
Connection pipe diameter	Liquid	mm	9.52
Connection pipe diameter	Gas	mm	15.88
Total pipe length		m	120
Max. height difference		m	30
Operating Range	Cooling	°CDB	-5 to 46
Operating Range	Heating	°CDB	-20 to 21

Note: Specifications are based on the following conditions.
Cooling: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB.
Heating: Indoor temperature of 20°CDB/(15°CWB), and outdoor temperature of 7°CDB/6°CWB.
Pipe length: 7.5 m; Height difference between outdoor unit and indoor unit: 0 m.
The protective function may work when using it outside the operation range.
