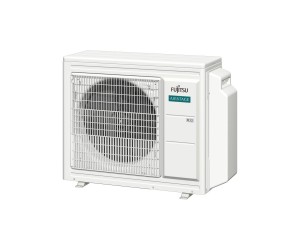

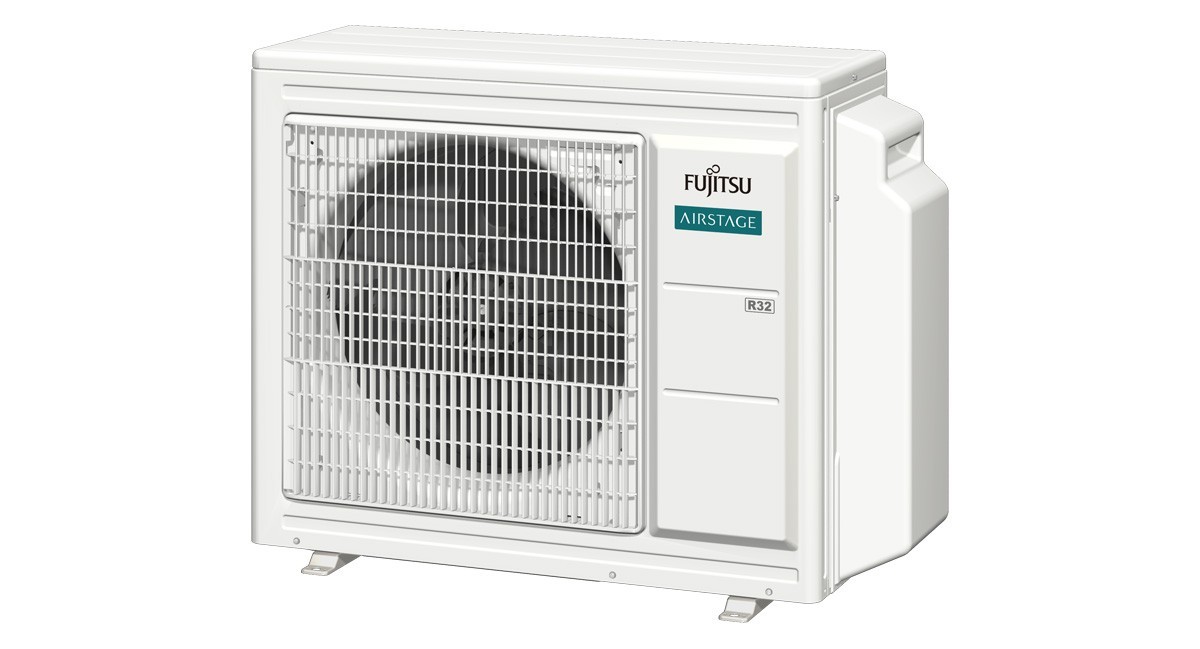

Multi Split outdoor unit Fujitsu Airstage AOEG24KBCA3

6.80 kW

8.00 kW

KBC

Multisplit

Inquiry Where to buy

Multi Split outdoor unit Fujitsu Airstage AOEG24KBCA3

€ 1,870.00

Basic specifications

6.80 kW

8.00 kW

46 dB

Indoor units connection: 3 pcs
Cooling capacity: 6.80 kW
Heating capacity: 8.00 kW
Maximum refrigerant pipe length (total): 50 m
Indoor unit wide range models

Variants

Series: KBC
Outdoor Unit: AOEG24KBCA3
Capacity (BTU): 24 000 BTU
Power Supply (V/ø/Hz): 230 / 1 / 50
Cooling Capacity (kW): 6.80 (1.80 - 8.50)
Heating Capacity (kW): 8.00 (2.0 - 9.2)
EER (Energy Efficiency Ratio): 3.90
COP (Coefficient Of Performance): 4.40
Sound Pressure Outdoor Unit - cooling/heating dB(A): 48 / 53
Sound Power Outdoor Unit - cooling/heating dB(A): 61 / 67
Air Flow Outdoor Unit - Cooling / Heating (m3/h): 2270 2270 / 2730/ 2730
Dimensions - Outdoor Unit HxWxD (mm): 716 × 820 × 315
Piping Connections - liquid / gas (mm): 6.35 × 3 / 9.52 × 2, 12.70 × 1 adapter [12.70 → 9.52] × 1
Maximum Pipe Lenght (m): 50 / 25
Maximum Height Difference Between Outdoor and Each Indoor Unit (m): 15
Maximum Height Difference Between Indoor Units (m): 10
Operation Range - Cooling (°C): -10 to 46
Operation Range - Heating (°C): -15 to 24
Refrigerant: R32
Weight (kg): 46
Warranty: 3 years
